European Precision and Quality

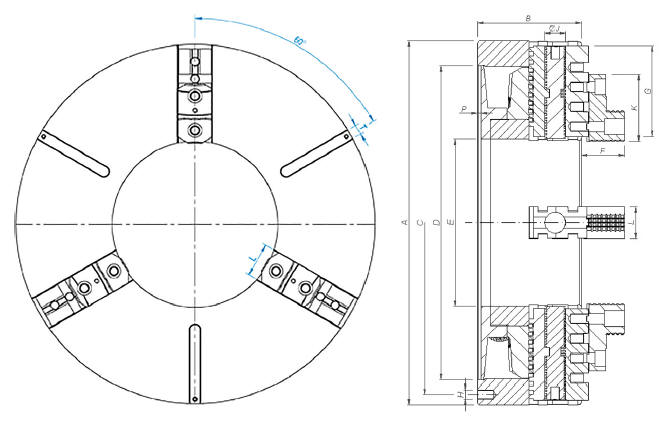

TMX 3-Jaw Extra Heavy Duty
Forged Steel Body Oil Country Chucks
Extra Large Thru Hole
Extra Heavy Duty Jaws

Each Chuck Provided With:
1 Set of Hard Master Jaws
1 Set of Reversible Hard Top Jaws
1 Set of Mounting Bolts



A
Chuck
Dia.		 Spindle
Mount		 Max.
Hole
Dia.
E		 Part
Number		 Max.
RPM		 Weight
(lbs)
Approx.		 D
Recess
Dia.		 C
Bolt
Circle
Dia.		 B
Body Height		 F
Jaw
Height		 J
Top Jaw
Length		 K
Master Jaw Length		 L
Guideway
Opening		 Max.
Torque
on
Key
Da.N.m		 Grip
Force
DAN
20 A2-11 7.48 3-825-2011P 1000 560 7.75 9.25 5.87 3.43 5.32 6.65 2.13 60 3750
20 A2-15 8.07 3-825-2025P 1000 530 11.25 13 5.87 3.43 5.32 6.65 2.13 60 3750
25 A2-15 11.06 3-825-2515P 970 650 11.25 13 6.61 3.27 5 6.5 2.36 60 3750
25 A2-20 12.52 3-825-2520P 970 650 16.25 14.5 6.69 3.27 5 6.5 2.36 60 3750
28 A2-15 11.06 3-825-2815P 873 815 11.25 16 6.81 3.62 56 7.99 2.95 60 3750
28 A2-20 12.52 3-825-2820P 873 815 16.25 14.5 6.89 3.62 5 7.99 2.95 60 3750
32 A2-15 11.06 3-825-3215P 764 992 11.25 16 7.01 3.62 5 7.99 2.95 70 4750
32 A2-20 12.55 3-825-3220P 764 1191 16.25 18.25 6.50 3.62 5 7.99 2.95 70 4750
32 A2-20 14.75 3-825-3222P 764 1191 16.25 18.25 6.50 3.62 5 7.99 2.95 70 4750
32 A2-20 16.06 3-825-3220P 764 992 16.25 18.25 7.09 3.62 5 7.99 2.95 70 4750
36 A2-15 11.06 3-825-3615P 679 1433 11.25 13 7.48 3.62 5 7.99 2.95 70 4750
36 A2-20 16.06 3-825-3620P 679 1433 16.25 18.25 7.48 3.62 5 7.99 2.95 70 4750
